Valve TypePACKER
Precision Valve Type Packing Solutions engineered for high performance, consistent weight, and reliable continuous operation. Specifically developed for self-closing valve bags in cement, wall putty, fly ash, gypsum, chemical, and other powdered materials.
High Speed Filling
Engineered for high throughput operations.
Precise Weighing
Load cell based system for consistent accuracy.
Heavy Duty Construction
Rugged design for long service life.
Low Maintenance
Simple operation with minimal downtime.
High Speed Filling. Precise Weighing. Maximum Performance.
Precision Valve Type Packing Solutions engineered for high performance, consistent weight, and reliable continuous operation. Specifically developed for self-closing valve bags in cement, wall putty, fly ash, gypsum, chemical, and other powdered materials. Features robust impeller-driven feeding, automated bag clamping, and precise electronic weighing to deliver consistent results in every bag, every time.
High Speed Filling
Efficient filling rate engineered for continuous packaging with high throughput up to 1050 bags/hour.
Precise Weighing System
Electronic load cell based weighing mechanism ensuring high repeatability and consistent bag weights within ±0.5% standard deviation.
Heavy Duty Construction
Rugged heavy-duty build designed for tough industrial conditions and long service life with abrasive bulk powders.
Low Maintenance & Consistent Performance
Built for continuous industrial operation with minimal downtime, easily accessible wear components, and dedicated spare parts support.

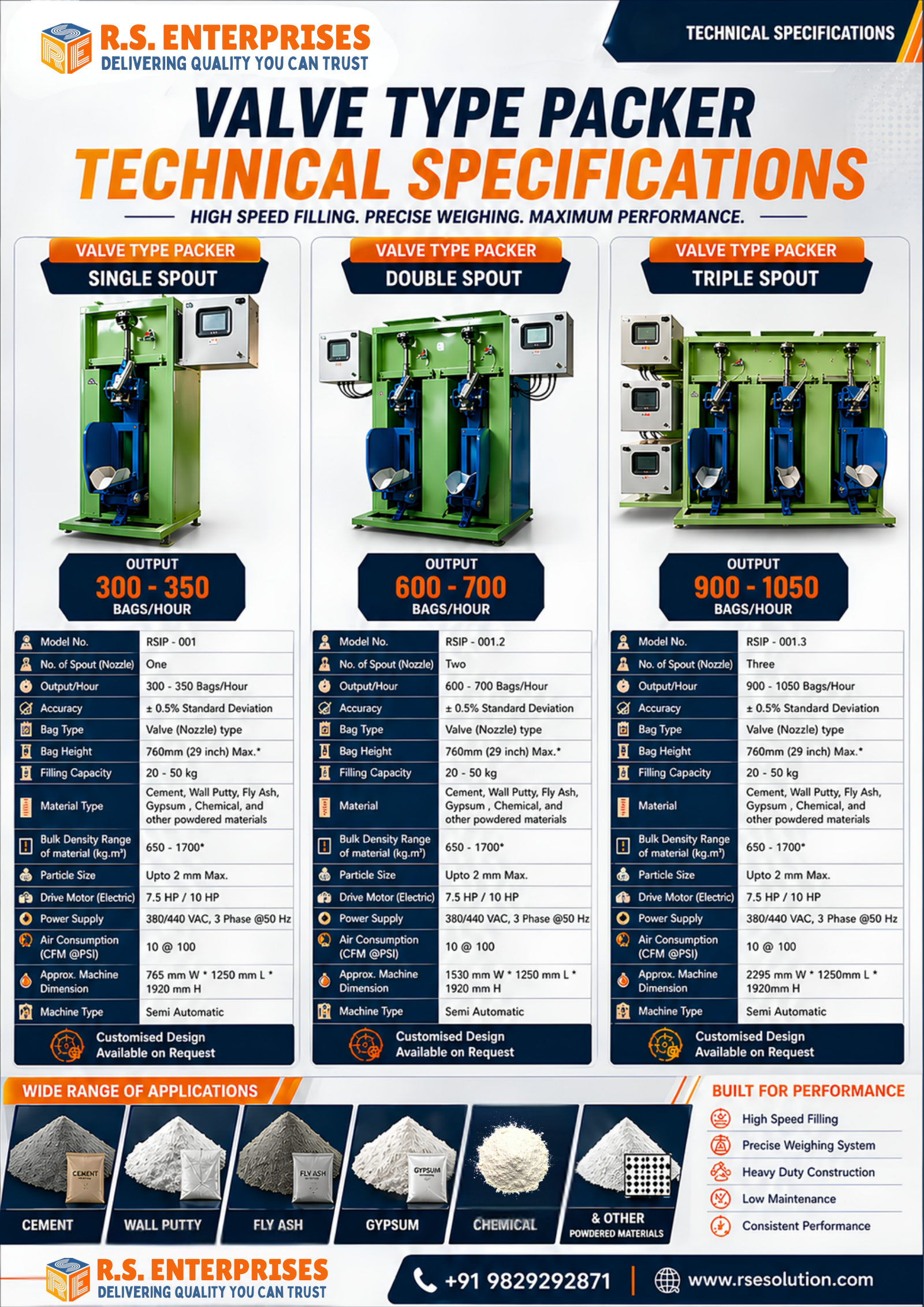

| Parameter | Engineering Value |
|---|---|
| Model No. | RSIP-001 |
| No. of Spout (Nozzle) | One |
| Output / Hour | 300–350 Bags/Hour |
| Accuracy | ± 0.5% Standard Deviation |
| Bag Type | Valve (Nozzle) type |
| Bag Height | 760mm (29 inch) Max. |
| Filling Capacity | 20 - 50 kg |
| Material Type | Cement, Wall Putty, Fly Ash, Gypsum, Chemical, and other powdered materials |
| Bulk Density Range of material (kg.m³) | 650 - 1700 |
| Particle Size | Upto 2 mm Max. |
| Drive Motor (Electric) | 7.5 HP / 10 HP |
| Power Supply | 380/440 VAC, 3 Phase @ 50 Hz |
| Air Consumption (CFM @PSI) | 10 @ 100 |
| Approx. Machine Dimension | 765 mm W × 1250 mm L × 1920 mm H |
| Machine Type | Semi Automatic |
| Customization | Customised Design Available on Request |
Looking for a Complete Solution?
Get a fully integrated packing line with conveyors, silos and automation.
Explore Plant Solutions
Need This Machine for Your Application?
Talk to our team about your material, capacity and packaging requirements.
