StitchingMACHINE
Reliable industrial stitching equipment designed for secure and consistent bag closing across bulk material packaging operations.
SECURE BAG CLOSING
Strong and consistent seams
RELIABLE OPERATION
Designed for continuous use
ROBUST CONSTRUCTION
Built for industrial environments
LOW MAINTENANCE
Practical and serviceable design
Secure Stitching. Reliable Bag Closing. Consistent Performance.

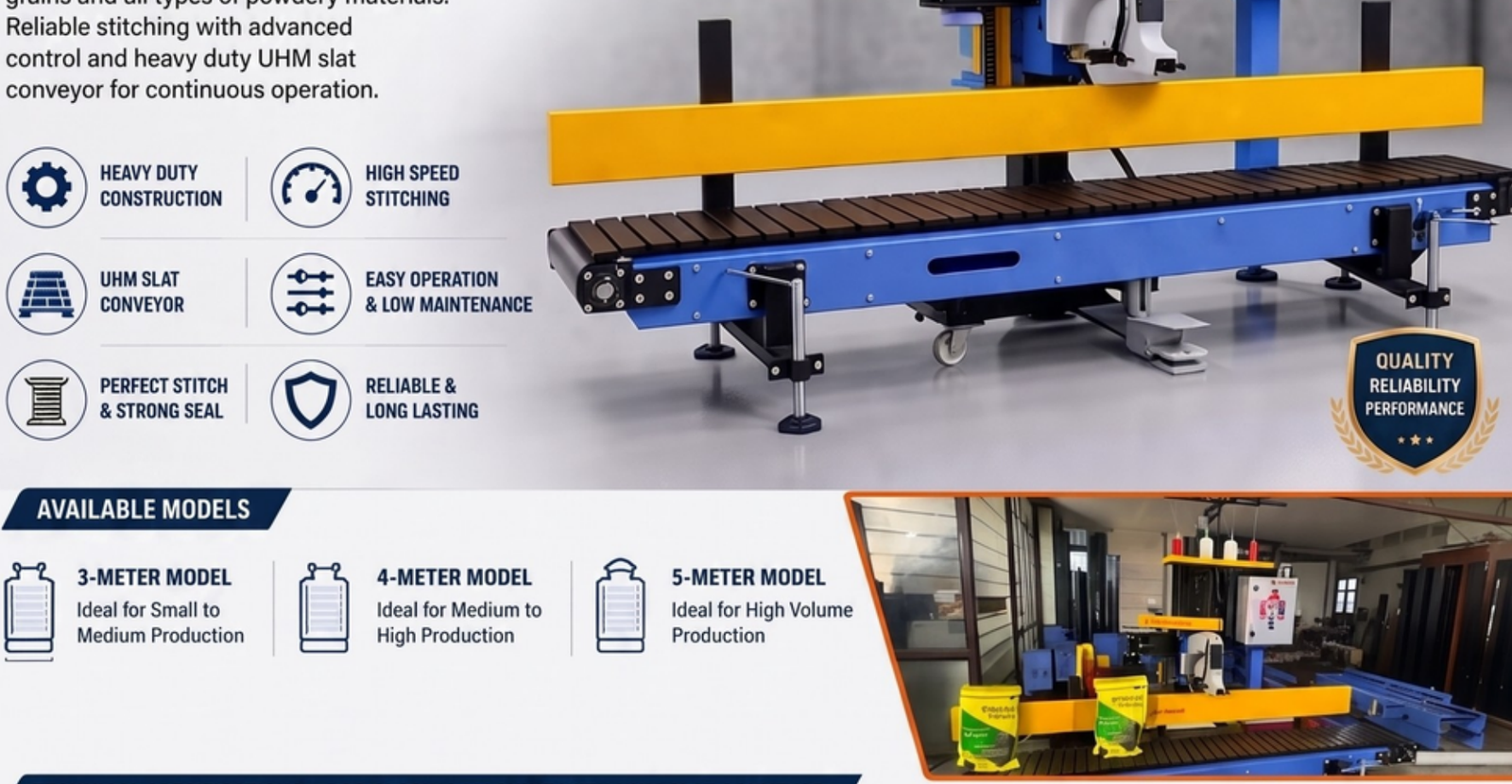

The R.S. Enterprises Bag Stitching Machine with UHM Slat Conveyor is engineered for fast, secure, and continuous closing of filled open mouth bags. Featuring an industrial 81000 H4 double-row chain stitch head and a heavy-duty CNC-machined slat conveyor with anti-friction wear surfaces, it delivers consistent, high-integrity closures across bulk material packaging operations.
High-Speed Operation
Two-needle four-thread industrial chain stitch head operating at speeds up to 1600 RPM.
Secure Stitching
Consistent bag closure with high-strength, leak-proof double row chain seams.
Robust Construction
Industrial-duty build with CNC laser cut 3 mm HRC frame and anti-friction UHM slats.
Easy Operation & Maintenance
Handwheel height adjustment from 500 mm to 1400 mm, integrated DOL starter, and foot pedal.
Industrial Bag Closing Applications
Suitable for industrial bag-closing applications. Final suitability depends on bag construction, material and production requirements.
Engineering Note: Compatible with open-mouth woven PP, HDPE, paper, and laminated bulk bags. Conveyor lengths available in 3m, 4m, and 5m configurations.

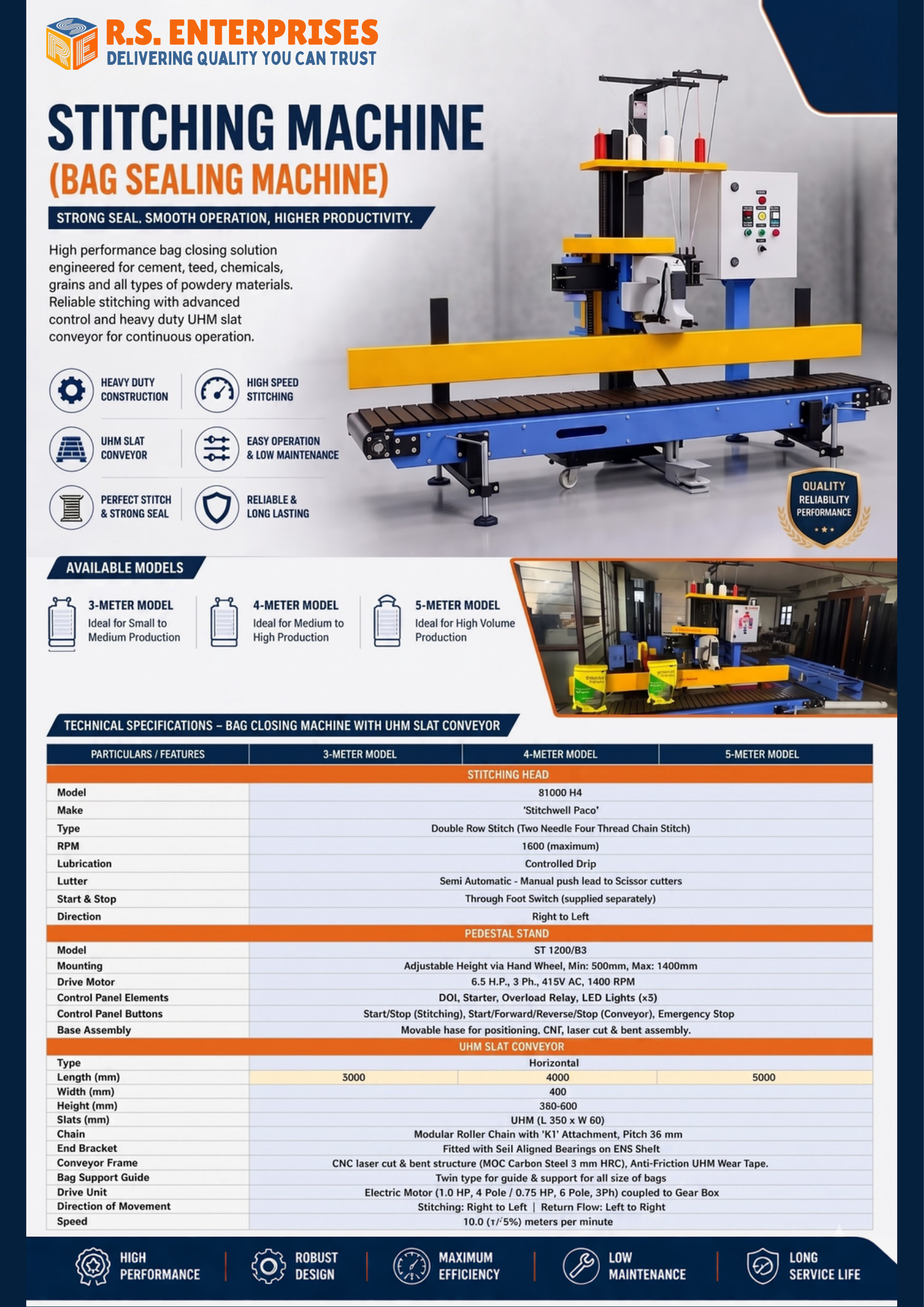

| Parameter | Engineering Value |
|---|---|
| Model No. | 81000 H4 / ST 1200/B3 |
| Stitching Head Model | 81000 H4 (Stitchwell Paco) |
| Stitch Type | Double Row Chain Stitch (Two Needle Four Thread) |
| Maximum Head Speed | 1600 RPM (maximum) |
| Conveyor Speed | 10.0 (±5%) Meters / Minute |
| Conveyor Length Options | 3-Meter / 4-Meter / 5-Meter Options |
| Conveyor Width | 400 mm (Slats: L 350 mm × W 60 mm UHM) |
| Conveyor Height | 380 – 600 mm (Adjustable) |
| Pedestal Stand Model | ST 1200/B3 |
| Pedestal Height Adjustment | Adjustable via Hand Wheel, Min: 500 mm, Max: 1400 mm |
| Pedestal Drive Motor | 0.5 H.P., 3 Phase, 415V AC, 1400 RPM |
| Conveyor Drive Unit | Electric Motor (1.0 HP, 4 Pole / 0.75 HP, 6 Pole, 3Ph) with Gear Box |
| Chain Specification | Modular Roller Chain with 'K1' Attachment, Pitch 36 mm |
| End Bracket Bearings | Self Aligned Bearings on ENS Shaft |
| Conveyor Frame Structure | CNC laser cut & bent structure (MOC Carbon Steel 3 mm HRC), Anti-Friction UHM Wear Tape |
| Bag Support Guide | Twin type guide & support for all bag sizes |
| Direction of Movement | Stitching: Right to Left | Return Flow: Left to Right |
| Control Panel Elements | DOL Starter, Overload Relay, 5x LED Lights |
| Control Panel Buttons | Start/Stop (Stitching), Start/Forward/Reverse/Stop (Conveyor), Emergency Stop |
| Cutter Mechanism | Semi-Automatic (Manual Push Lead to Scissor Cutters) |
| Lubrication System | Controlled Drip Lubrication |
| Start / Stop Control | Through Foot Switch (Supplied Separately) |
| Base Assembly | Movable base for positioning, CNC laser cut & bent assembly |
| Customization | Available on Request |
